| Τόπος καταγωγής: | ΚΙΝΑ |
|---|---|
| Μάρκα: | SINOLIFT |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | ESG100 ESG150 |
| Ποσότητα παραγγελίας min: | 1 σετ |
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Συσκευασία εξαγωγής Sandard |
| Χρόνος παράδοσης: | 15 ημέρες |
| Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union |
| Δυνατότητα προσφοράς: | 1000 σύνολα/στόμα |
| Όνομα προϊόντος: | Sinolift ESG100 ESG150 Ελαφρύ ηλεκτρικός στοίβατος | Στυλ οδήγησης: | πεζός |
|---|---|---|---|
| Χωρητικότητα φόρτωσης: | 150 κιλά | Εγγύηση: | 1 έτος |
| Προληπτική υπηρεσία: | on-line υπηρεσία, δωρεάν ανταλλακτικά | Καθαρό βάρος: | 91kg |
Product Name

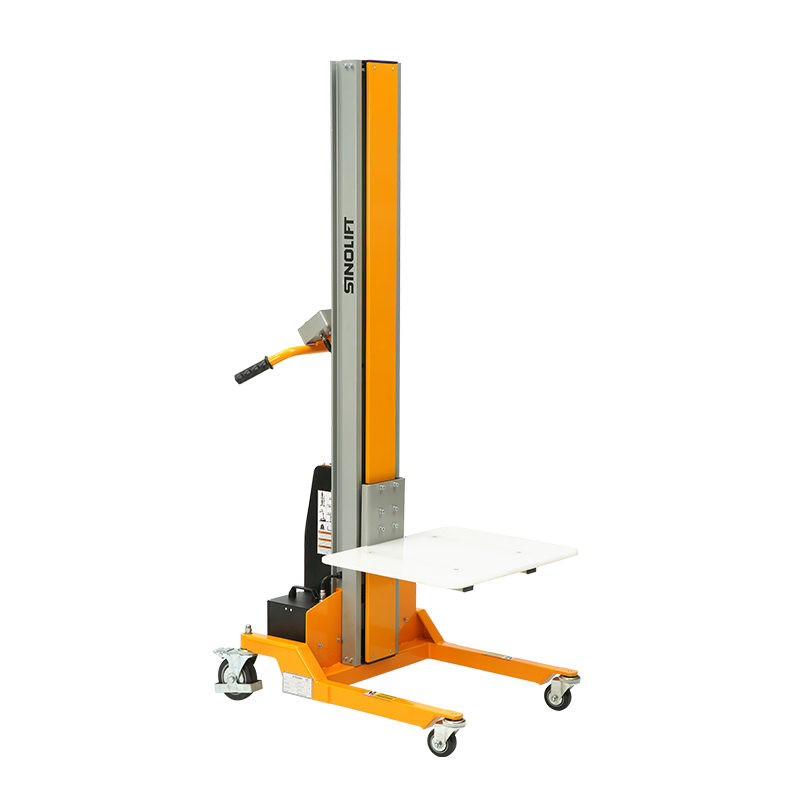

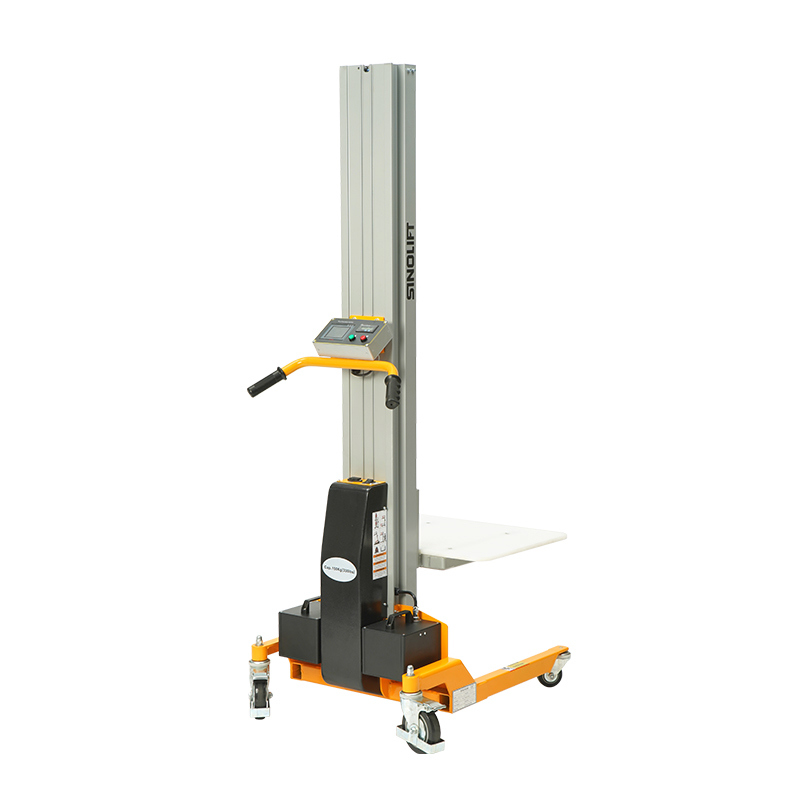

SINOLIFT ESG100 ESG150 Lightweight Electric Screw Stacker
Crafted from high-quality steel, this equipment features a push-pull electric screw lifting system for loading and unloading operations. It ensures precise height control, stable performance, and minimal maintenance, enabling accurate integration of material handling with other machinery. With oil-free operation, it is eco-friendly and pollution-free, making it suitable for cleanroom environments—ideal for industries with high environmental standards such as food and pharmaceuticals.
Key Features
1. Lightweight & Compact, Single-Person Operation
Innovative and lightweight design, flexible operation; maximum load capacity: 150KG, lifting height: 1.62 meters
Self-weight only 91KG, easy and labor-saving to operate; can be easily moved and carried by one person
2. Smooth & Stable Frame
Column-Type Lifting Design
Reinforced and thickened with high-quality steel, durable and corrosion-resistant, sturdy and non-deformable, enhancing load-bearing capacity; screw rod material: 40CR, no obvious vibration, suitable for precise material docking with equipment
3. PE Standard Platform
Loading Platform with Strong Load-Bearing Capacity
Smooth surface, solid material, sturdy and durable, long service life

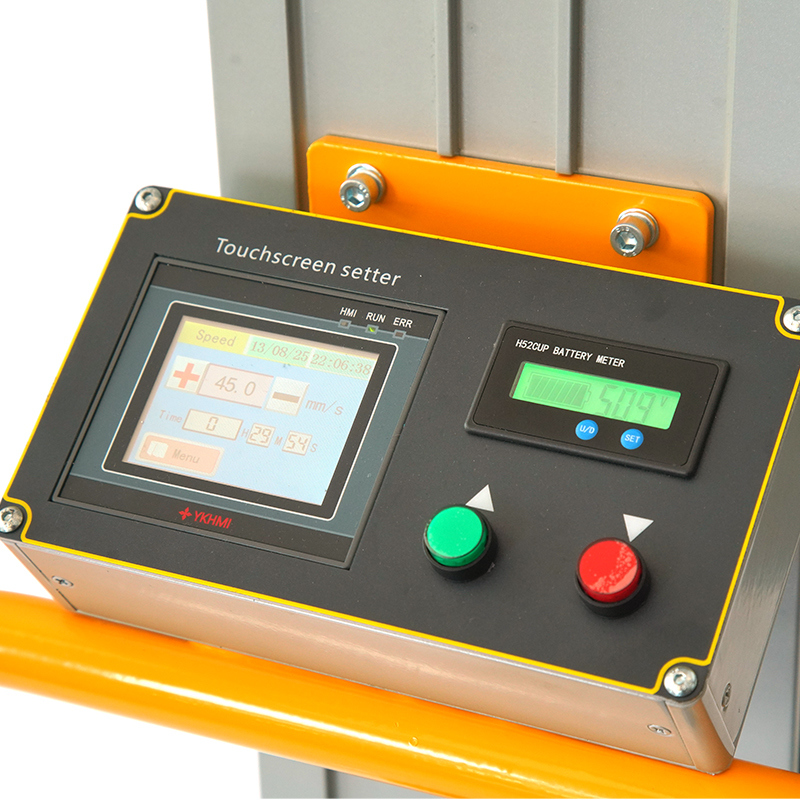

4. Intelligent Control Display Panel
Equipped with a speed-adjustable servo motor, it allows accurate control of lifting/lowering speed (adjustment range: 0.5-50MM/S)

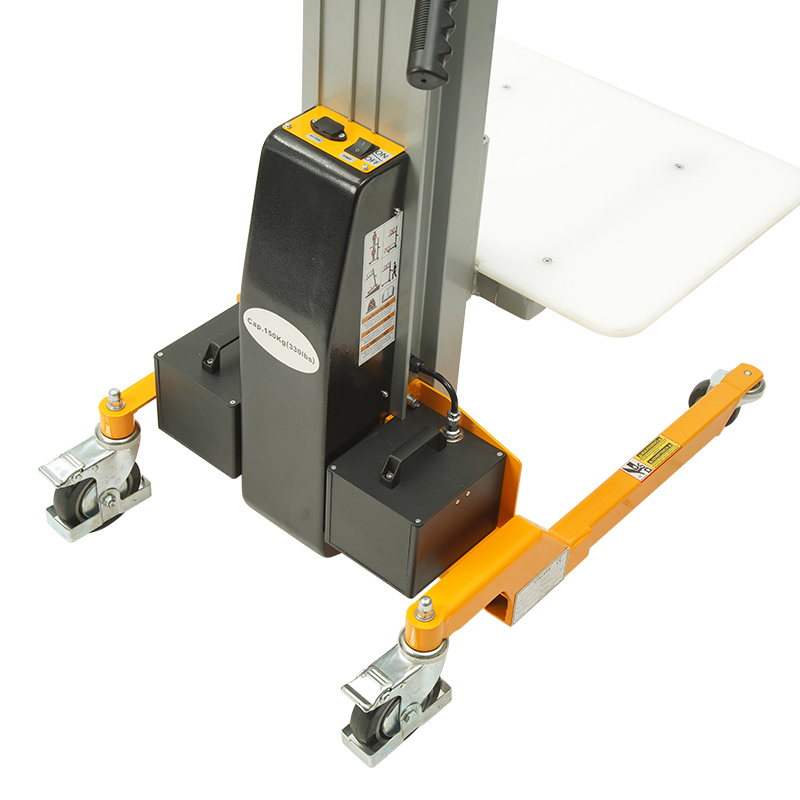

5. Suitable for Narrow Spaces
Lightweight design with small turning radius; PU polyurethane swivel rear wheels for flexible maneuvering, enabling easy turning in narrow aisles
Product Specifications
| SINOLIFT ESG100 ESG150 Lightweight Electric Screw Stacker Technical Specifications | |||||
| Parameter | Unit | ESG-100 | ESG-150 | ESG-100C | ESG-150C |
| Model | ESG-100 | ESG-150 | ESG-100C | ESG-150C | |
| Type | Electric | Electric | Electric/SS | Electric/SS | |
| Load Capacity | kg | 100 | 150 | 100 | 150 |
| Platform Size | mm | 475×605 | 475×605 | 475×605 | 475×605 |
| Min. Platform Height | mm | 130 | 130 | 130 | 130 |
| Max. Platform Height | mm | 1700 | 1620 | 1700 | 1620 |
| Outrigger Dimensions | mm | 475×40 | 475×40 | 475×40 | 475×40 |
| Overall Outrigger Width | mm | 570 | 570 | 570 | 570 |
| Outrigger Ground Clearance | mm | 115 | 115 | 115 | 115 |
| Front Wheel Specification (PU) | mm | Ø75 | Ø75 | Ø75 | Ø75 |
| Rear Wheel Specification (PU) | mm | Ø125 | Ø125 | Ø125 | Ø125 |
| Power Unit Output | V/W | 48/400 | 48/400 | 48/400 | 48/400 |
| Battery Specifications | V/Ah | 12/7×4 | 12/7×4 | 12/7×4 | 12/7×4 |
| Overall Dimensions (L×W×H) | mm | 926×605×2015 | 926×605×1815 | 926×605×2015 | 926×605×1815 |
| Net Weight | kg | 93 | 91 | 93 | 91 |
